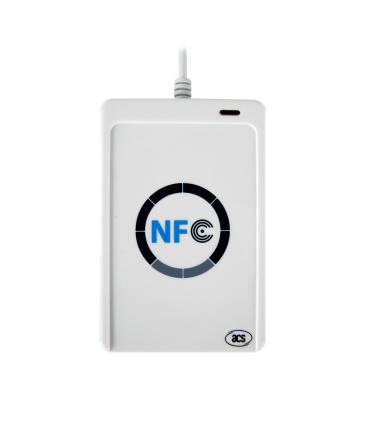

Cititorul de carduri ACR 122U este utilizat pentru citirea/scrierea cardurilor in tehnologia contactless 13.56Mhz. Este primul cititor/inscriptor de carduri contactless din lume care intruneste ambele standarde ISO 14443 si ISO 18092. ACR 122U este destinat nu numai pentru cardurile MIFARE si ISO 14443 tip A si B ci si pentru FeliCa si tagurile NFC.
ACR 122U este compact si se poate utiliza in aplicatii precum plati, control acces, pontaj, e-healthcare, transport, monitorizare imprimari (cu o imprimanta ce suporta card reader)
Bonus: 2 carduri printabile 13.56 Mhz
-USB 2.0 Full Speed Interface
-CCID Compliance
-Smart Card Reader:
-Read/write speed up to 424 kbps
-Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
-Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
-Built-in anti-collision feature (only 1 tag is accessed at any time)
-Application Programming Interface:
-Supports PC/SC
-Supports CT-API (through wrapper on top of PC/SC)
-Peripherals:
-User-controllable bi-color LED
-User-controllable buzzer
-Supports Android™ OS 3.1 and above
| Dimensions | 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H) |
| Weight | 70.0 g |
| Interface | USB Full Speed |
| Operating Distance | Up to 50 mm (depends on the tag type) |
| Supply Voltage | Regulated 5V DC |
| Supply Current | 200mA (operating); 50mA (standby); 100mA (normal) |
| Operating Temperature | 0-50 °C |
| Operating Frequency | 13.56 MHz |
| Smart Card Interface Support |
|
| Compliance / Certifications |
|
| Operating System Support |
|
